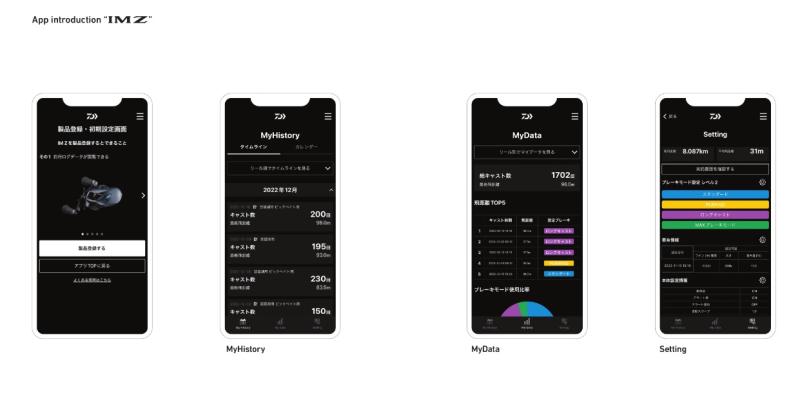

24 IM Z TW app

24 IM Z TW app

24 IM Z TW front/side
24 IM Z TW
24 IM Z TW handle side
24 IM Z TW front
24 IM Z TW top
24 IM Z TW modes
24 IM Z TW app

24 IM Z TW

~ 770 $
Brand
Model year
2024
  • Aluminum frame and side plate
  • Hyper Drive Design (Hyper Armed Housing,
    Hyper Drive Digigear, Hyper Double Support,
    Hyper Tough Clutch)
  • Intelligent Magforce
  • Daiwa Connecting-System
  • T-Wing System (TWS)
  • 10 CRBBs + 1
  • ATD drag system
  • G1 duralumin 38mm spool
  • Zero adjuster
  • Aluminum large diameter star drag
  • 95mm Aluminum Swept Handle
  • Power round EVA knob (S)
  • Made in Japan

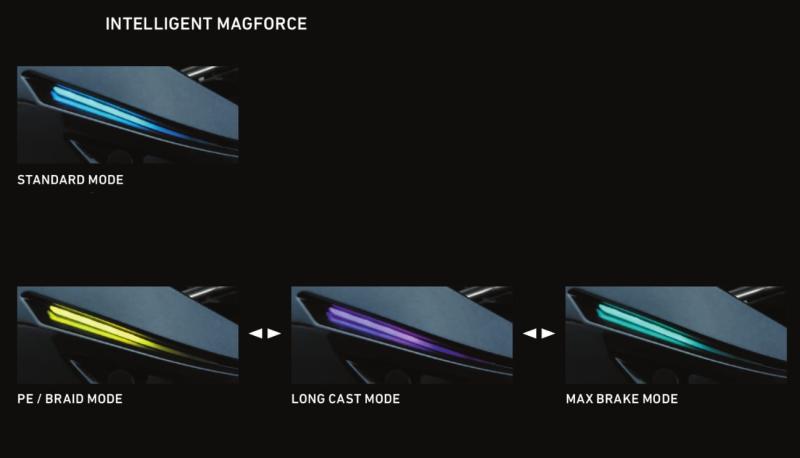

  • LED colour mode indicator: Standard, PE/Braid, Long cast, Max brake, PE long cast mode
  • Battery capacity: 410mAh
  • Battery charge time: about 90 minutes (when using the included USB Type-C)
  • Number of throws: about 700 per one charge
  • Usage environment: Operating temperature: 0 to 40 degrees, Charging temperature: 15 to 30 degrees
  • Compatible OS: Android 11 or higher / iOS 13.0 or higher
  • Communication method: Bluetooth® Low Energy 5.0
  • Maximum communication distance: about 10m
  • Frequency band used: 2.4GHz band

2024 Daiwa IM Z TW low profile baitcasting fishing reel series.

24 IM Z TW lineup:

24 IM Z TW specification:

Model Size Bearings Gear ratio Weight Drag power Line per cranck Line capacity Handle position Approx. Price
24 IM Z TW 200HL-C 200 10+1 7.4:1 245.00 GM / 8.64 OZ 7.00 KG / 15.40 LB 84.00 CM / 34.30 IN Mono (LB-YD): 16-135, 20-110 | Mono (LB-M): 16-125, 20-100 | PE-M: 4-100, 5-80 Left hand ~ 770 $
24 IM Z TW 200H-C 200 10+1 7.3:1 245.00 GM / 8.64 OZ 7.00 KG / 15.40 LB 87.00 CM / 34.30 IN Mono (LB-YD): 16-135, 20-110 | Mono (LB-M): 16-125, 20-100 | PE-M: 4-100, 5-80 Right hand ~ 770 $
24 IM Z TW 200XH-C 200 10+1 8.4:1 245.00 GM / 8.64 OZ 7.00 KG / 15.40 LB 100.00 CM / 39.40 IN Mono (LB-YD): 16-135, 20-110 | Mono (LB-M): 16-125, 20-100 | PE-M: 4-100, 5-80 Right hand ~ 770 $
24 IM Z TW 200XHL-C 200 10+1 8.4:1 245.00 GM / 8.64 OZ 7.00 KG / 15.40 LB 100.00 CM / 39.40 IN Mono (LB-YD): 16-135, 20-110 | Mono (LB-M): 16-125, 20-100 | PE-M: 4-100, 5-80 Left hand ~ 770 $
